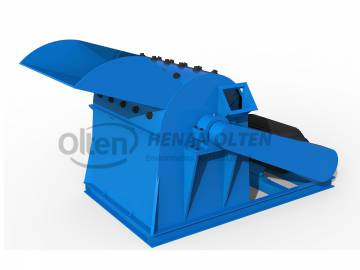

Disc Wood Crusher

  • Model: 500 / 800
  • Power: 15kw / 30kw
  • Weight: 280kg / 500kg
  • Size: 1500*700*900mm / 1700*800*1350mm
  • Processing Capacity: 0.8-1t/h / 1-1.5t/h

We have rich production experience, independent technical R & D team, and excellent quality of all products. In addition, we can provide customized production, overseas installation training and other services to our customers.

We're here to help: Easy ways to get the answers you need.

disc wood crusher

Product Introduction

Disc wood crusher integrates slicing and crushing, and is a new type of wood crushing equipment. It is one of the main equipments in the crushing raw mateials in the charcoal making production process.
Disc wood crusher can process coarse logs, branches and other raw materials into sawdust at one time. The disc wood crusher is widely used in the production fields of papermaking, edible fungus, machine-made charcoal, particle board, sawdust board, high density board, medium fiber board and so on.

disc wood crusher

disc wood crusher

Working Principle

When it is working, the raw materials pass through the inlet and pass through the high-speed rotating rotor inlaid with blades and hammers to cut and smash the materials, and discharge the cut and smashed products with high air pressure.

disc wood crusher

disc wood crusher

Core Components

  • Cutter head: manganese steel material, high hardness and wear resistance.
  • Blade: High-speed alloy steel, durable and non-curling.
  • Hammer: 65Mn, quenched to increase the toughness and wear resistance of the hammer.
  • Screen: No. 45 cold-rolled plate, with good acid and alkali resistance, good rust resistance, and a variety of models can be customized.

Product Advantages

  • (1) Wide application range, low cost, good finished product and high stability.
  • (2) It can be driven by electric motors, diesel engines and gasoline engines, and can realize mobile operation.

Product Parameter

Parameter of Disc Wood Crusher

Model Power(kw) Processing Capacity(t/h) Weight(kg) Size(mm)
450 7.5 0.5-0.8 180 1300*600*700
500 15 0.8-1 280 1500*700*900
800 30 1-1.5 500 1700*800*1350
1050 55-75 4-6 900 2500*1200*1200
1200 75-90 6-8 1800 2900*1750*1400
1500 110-132 8-10 2400 3200*1850*1500
1800 132-160 10-15 2800 3500*1900*1650
