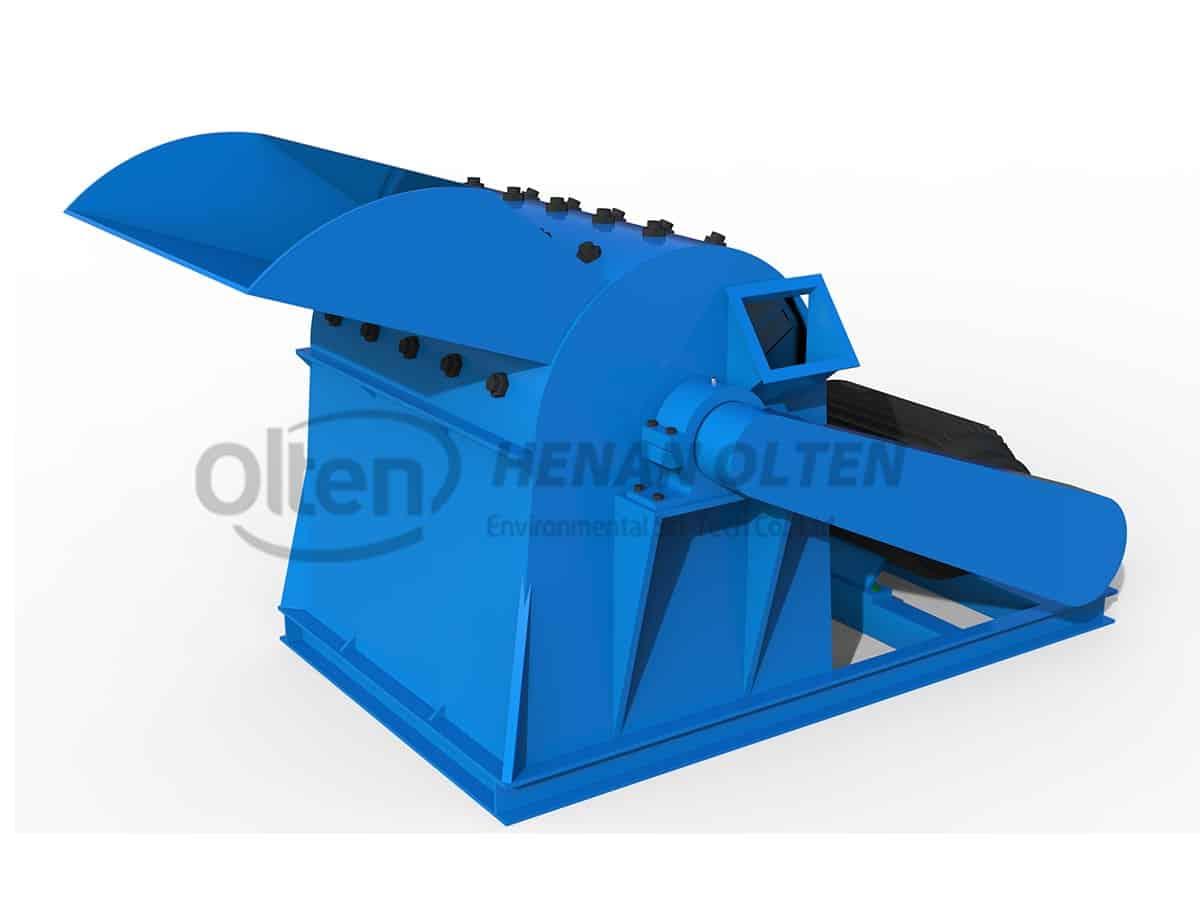

Double Mouth Crusher

  • Model: 600 / 800
  • Power: 30kw / 45kw
  • Weight: 850kg / 1600kg
  • Size: 2.5*2*2.2m / 5*3*3.5m
  • Processing Capacity: 800-1000kg/h / 1200-1500kg/h

We have rich production experience, independent technical R & D team, and excellent quality of all products. In addition, we can provide customized production, overseas installation training and other services to our customers.

We're here to help: Easy ways to get the answers you need.

double mouth crusher

Product Introduction

Double mouth crusher is one of the main equipments in the crushing raw mateials in the charcoal making production process.. This product makes full use of the principle of first slicing and then hammer impact, which can process various raw materials into sawdust at one time.

Double mouth crusher is widely used in papermaking, edible fungi, machine-made charcoal, particle board, sawdust board, high-density board, medium fiber board and other industrial production fields.

double mouth crusher

double mouth crusher

Working Principle

When it works, the raw materials pass through the feed port, and are crushed by a high-speed rotating rotor with hammers and blades. At the same time, the cut and crushed products are discharged with high airflow pressure. The size of the final product is controlled by the screen.

double mouth crusher structure diagram

double mouth crusher structure diagram

Core Components

  • Crushing blade and Hammer: The blade is made of high-speed alloy steel, and the hammer is 65Mn after heat treatment, with high wear resistance and high hardness.
  • Lining board: Manganese steel.
  • Screen: No. 45 cold-rolled plate, acid and alkali resistance, good rust resistance, many models can be customized.
  • Spindle: No. 45 steel quenched and tempered, the rotor is checked and balanced.

Product Parameter

Parameter of Double Mouth Crusher

Model Power(kw) Feed Size(mm) Processing Capacity(kg/h) Weight(kg) Size(m)
600 30 220*190 800-1000 850 2.5*2*2.2
800 45+5.5+2.2 220*230 1200-1500 1600 5*3*3.5
