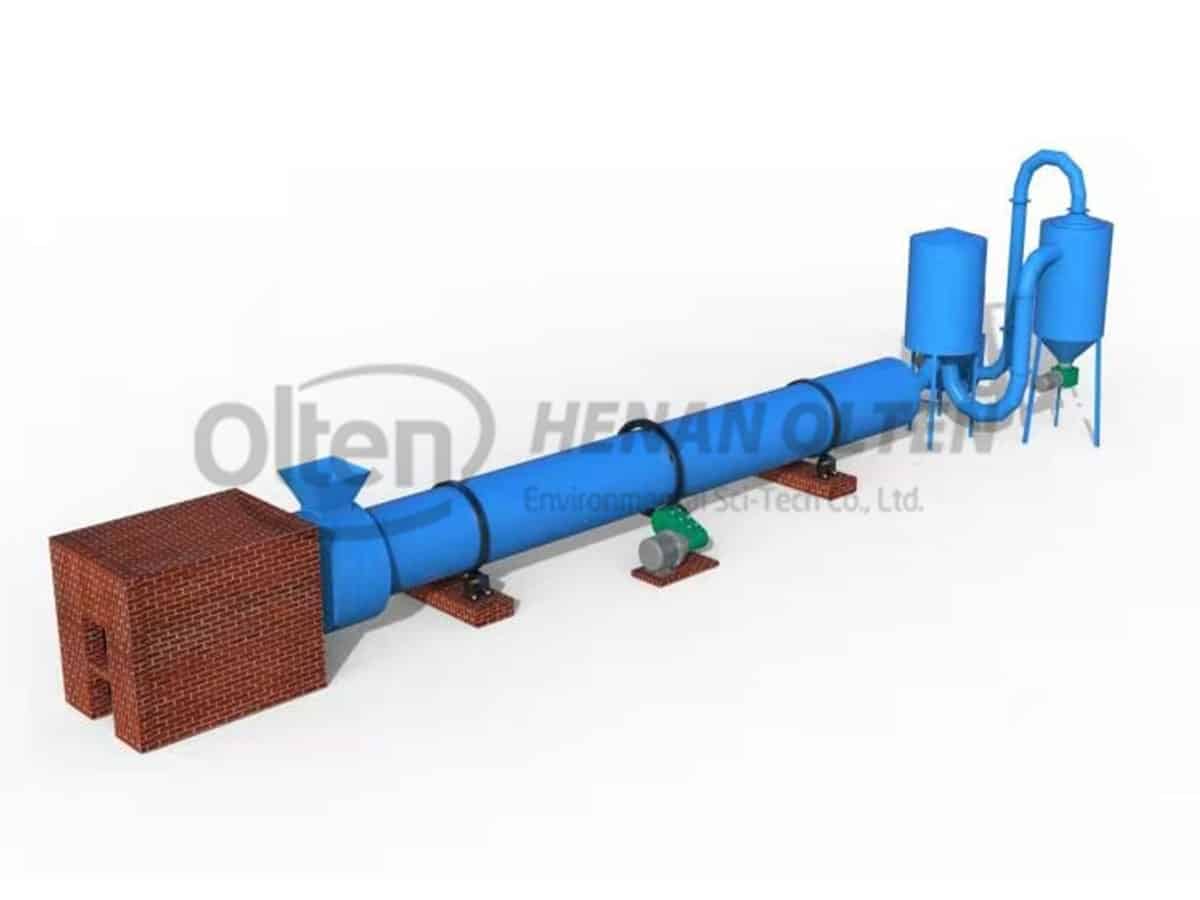

Rotary Drum Dryer

  • Model: GT-800
  • Power: 13kw
  • Weight: 4000kg
  • Size: 0.8*10.5m
  • Processing Capacity: 800-1200kg/h

We have rich production experience, independent technical R & D team, and excellent quality of all products. In addition, we can provide customized production, overseas installation training and other services to our customers.

We're here to help: Easy ways to get the answers you need.

rotary drum dryer

Product introduction

Rotary Drum Dryer is one of the main equipments in the drying process in the charcoal making production process. The equipment is reliable in operation, flexible in operation, strong in adaptability, and large in processing capacity.

Rotary drum dryer is widely used in metallurgy, building materials, chemicals, coal washing, fertilizer, ore, sand, and clay, Kaolin, sugar and other fields.The diameter and length of the equipment are determined according to the drying requirements.

rotary drum dryer

rotary drum dryer

Working principle

When rotary drum dryer is working, the damp material enters the drying cylinder through the conveyor and is repeatedly raised and thrown down by the lifting plate on the wall of the drum. During the falling process, it scatters into fine particles and fully contacts the hot air. Realize the drying of materials.

rotary drum dryer structure diagram

rotary drum dryer structure diagram

Core Components

  • Fire box: thickened high temperature resistant steel plate is used on the outside to ensure its durability; internally built with refractory insulation bricks (high alumina bricks) to ensure its thermal insulation.
  • Pipes and Shakron: thick seamless round steel, high temperature resistance, corrosion resistance, durable.

Product Advantages

  • (1)The fire box is built of red bricks and refractory bricks to ensure its robustness and heat preservation.
  • (2)The rotary drum and the lifting plate are made of thickened national standard steel plate to ensure their durability and no deformation.
  • (3)The gear and magnetic ring are made of thick cast iron.
  • (4)The roller has undergone high temperature carburizing treatment.
  • (5)The outside of the drum is wrapped with flame-retardant thermal insulation cotton, which has good thermal insulation and save fuel.

Product Parameter

Parameter of Rotary Drum Dryer

Model GT-630 GT-800 GT-1000 GT-1200 GT-1500 GT-1800 GT-2000-1
Power(kw) 5.5 5.5 7.5 7.5 11 18.5 22
Fan(kw) 7.5 7.5 11 15 18.5-22 22-30 30-37
Processing Capacity(kg/h) 600-900 800-1200 1000-1400 1200-1600 1500-2000 1800-2500 2200-2800
Weight(kg) 2800-3200 3500-4000 5000-5500 6000-6500 10000 180000 220000
Drum diamete(m) 0.63 0.8 1 1.2 1.5 1.8 2
Drum Length(m) 9 10.5 12 12 15 18 20
